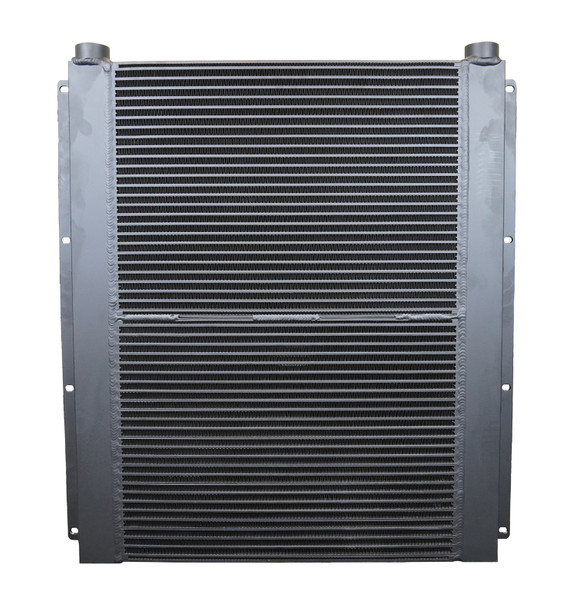

Universal Mount, Aluminum Bar and Plate Oil Cooler 25.1” x 30” x 1.6” (26504)

Write a Review
SKU:
26504
MPN:
26504
  • Universal Mount, Aluminum Bar and Plate Oil Cooler 25.1” x 30” x 1.6” (26504)
  • Universal Mount, Aluminum Bar and Plate Oil Cooler 25.1” x 30” x 1.6” (26504)
  • Universal Mount, Aluminum Bar and Plate Oil Cooler 25.1” x 30” x 1.6” (26504)
  • Universal Mount, Aluminum Bar and Plate Oil Cooler 25.1” x 30” x 1.6” (26504)
  • Universal Mount, Aluminum Bar and Plate Oil Cooler 25.1” x 30” x 1.6” (26504)
MSRP: $631.25
$505.00
— You save $126.25

Description

Universal Mount Bar and Plate Oil Cooler OC-50-15

25.1” x 30” x 1.6”

SEE SIZING CHART FOR ADDITIONAL SIZE OPTIONS



INSTALLATION SHOULD BE PERFORMED BY TRAINED PROFESSIONAL!

ASSEMBLY NEEDS TO BE INSTALLED ON THE LOW-PRESSURE SIDE OF THE OIL CIRCUIT

PART NUMBER:

 26504

MODEL NUMBER:

OC-50-15

CORE (FINNED AREA) DIMENSIONS:

20.2” x 30” x 1.6”

OVERALL DIMENSIONS:

25.1” x 31” x 1.6”

INLET / OUTLET PORT:

-16 SAE O-RING (1-5/16-12 thread)

FLOW RATING:

1-55 GPM

HEAT REJECTION:

11-20 HP (27,995-50,900 BTU/HR)

MAX WORKING PRESSURE:

300 PSI

MAX OPERATING TEMPERATURE:

350⁰F

Cross Reference Part Numbers: DH-348-2-1, 9-12370-348, 016038

View AllClose

Warranty Information

American Cooling Solutions warrants to the original purchaser that, for a period of one year from the date of purchase, the product will be free from defects in material and workmanship under proper use and conditions. Terms and Conditions can be viewed on the American Cooling Solutions website
